DELLUXE AUTO LABORATORY COMBO UNIT
All DALWORTH LAB UNITS ARE BUILT WITH OUR OUR PROVEN SUPERMILL DESIGN. The Fully Auto control systems are like a "vending machine", just select the product and hit start. The system runs the product, rinses out and shuts down. Our trusted mills are designed and built by Dalworth to duplicate the results you wish to achieve in your current or future DALWORTH production unit.

  • Units are custom built to your specifications
  • Fully Automated Flow Control Systems
  • Auto Residual Temperature Control System for Emulsions
  • Offered as Emulsion Only or as Combination system for All Asphalt Products
  • Manual Controls offered on smaller systems
  • Sample runs of less than 2 gallon total
  • Tank & line heat w/ controller and jacketed insulation
  • VFD's on all pumps for precise flow rate adjustments
  • Coriolis Flow meter for all Flow control systems
  • Optional Heat Exchanger
  • Deluxe S/S Cart that is 86" x 36" x 60" tall or as small as 36" x 36"
  • Table top unit which is our Basic Emulsion model
  • Deluxe Units require 220V/3Ph power source, one lab tech and can be used for testing any polymer modified products, GTR and all asphalt emulsions including Low Pen and PMA based products

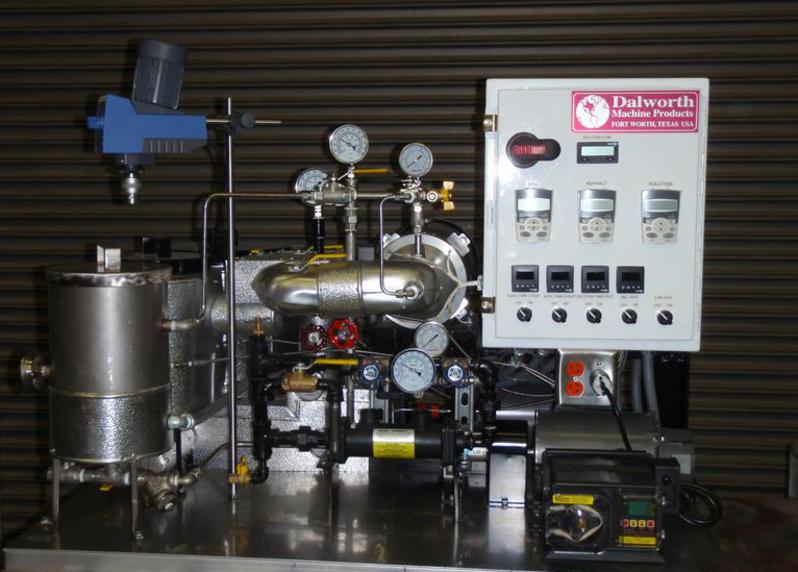

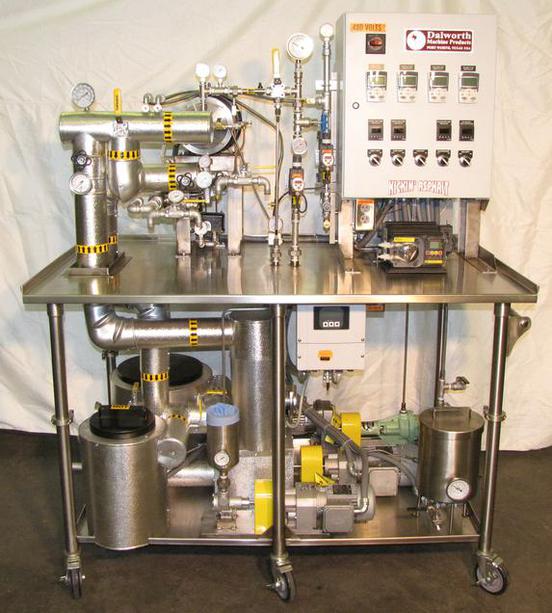

DALWORTH®  DMV-05S  COMBINATION EMULSION/PMA LAB MANUAL CONTROLLED® SYSTEM

w/  OPTIONAL CORIOLIS ASPHALT METER, INLINE LATEX & SOLVENT INJECTION WITH FLOW METERS & MULTIPLE INJECTION POINTS. HEX W/ CLOSED LOOP COOLING SYSTEM. DUAL HEATED ASPHALT TANKS & HEATED S/S SOAP TANK, FIXED STATOR MILL FOR HIGH SHEAR, HIGH SPEED BEARING FOR VARIABLE SPEED TESTING, LOW MAINTENANCE.

MILL WITH PREHEAT CAN BE ORDERED SEPARATELY WITH 5 HP MOTOR OR AS SHOWN WITH CUSTOM BUILT SYSTEM.

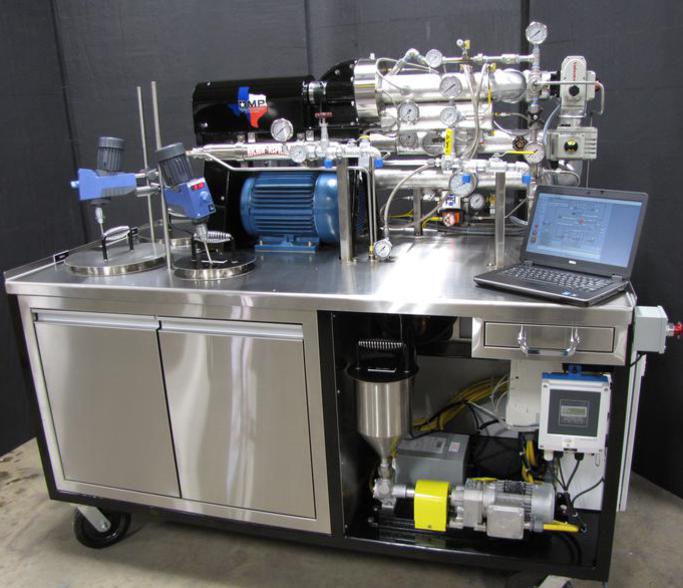

DALWORTH®  DELUXE DLM-02SC COMBINATION EMULSION/PMA
AUTOMATED FLOW  CONTROLED SYSTEM W/ 7.5 HP MOTOR​

w/ CORIOLIS ASPHALT METER, INLINE LATEX & SOLVENT INJECTION WITH FLOW METERS & MULTIPLE INJECTION POINTS. HEX W/ CLOSED LOOP COOLING SYSTEM. DUAL HEATED ASPHALT TANKS &  HEATED S/S SOAP TANK WITH  EXHAUST PORT TO REMOVE FUMES FROM LAB

MAKES ALL COMMONLY USE POLYMER PRODUCTS, RADIAL & LINEAR AND ALL ASPHALT EMULSIONS INCLUDE LOW PEN AND PMA BASE

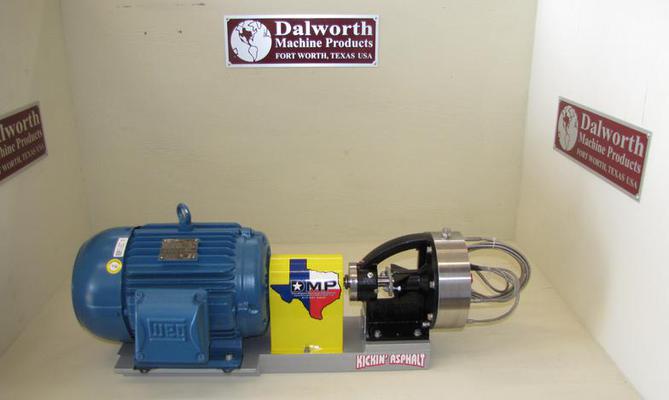

DALWORTH®  DLM-02SC  COMBINATION
EMULSION/PMA SUPERMILL®


w/ EZ LOC® GAP ADJUSTER , ELECTRIC PREHEAT, FIXED STATOR FOR HIGH SHEAR, HIGH SPEED BEARING FOR VARIABLE SPEED TESTING, LOW MAINTENANCE.
MILL WITH PREHEAT CAN BE ORDERED SEPARATELY
and as shown
WITH 5 HP or 7.5 HP VFD rated MOTOR

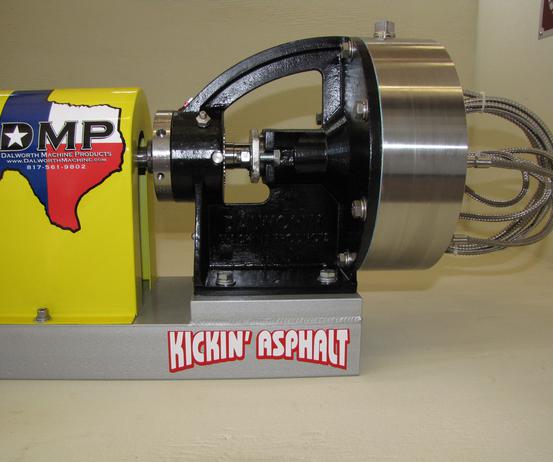

DALWORTH®  DMV-05S  EMULSION LIGHT DUTY LAB MILL


w/  ELECTRIC PREHEAT, FIXED STATOR FOR HIGH SHEAR, DUAL SEALED MECHANICAL SEAL WITH COOLING FLUSH, HIGH SPEED BEARING FOR VARIABLE SPEED TESTING, LOW MAINTENANCE.
MILL WITH PREHEAT CAN BE ORDERED WITH 5 HP MOTOR ONLY
OR
CAN BE ORDERED WITH COMPLETE TABLE TOP EMULSION SYSTEM
DALWORTH MANUAL LABORATORY COMBO UNIT
