DALWORTH MACHINE PRODUCTS, INC UPGRADE SERVICES
We are always glad to help our customers with
MILL UPGRADES!
WANT TO BUY A NEW MILL TO GET THE LATEST FEATURES, BUT IT'S JUST NOT IN THE BUDGET
JUST SEND YOUR MILL TO US AND WE WILL UPGRADE IT WHILE WE RECONDITION IT.
Just contact our Supermill® Experts!
UPGRADE
YOUR "OLD" DALWORTH WITH FEATURES LIKE A MODERN
DALWORTH SUPERMILL®
SERIAL NUMBER REQUIRED FOR QUOTE
UPGRADE TO
EZ LOC® GAP ADJUSTER
AVAILABLE FOR ALL OIL LUBRICATED MODELS

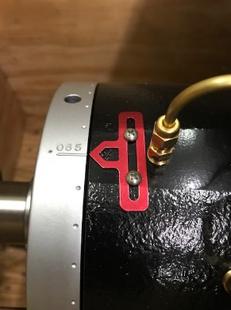

EZ LOC ™ GAP ADJUSTER has been developed for customers that would like to adjust the mill shear plate gap to increase or decrease the particle size quickly & easily. The adjuster consists of a simple spring-loaded locking pin that is pulled out 1/8 of an inch to adjust the mill shear plate gap. The Outer Bearing assembly hub is then free to turn either direction until the desired gap is reached. The graduations on the hub clearly indicate the mill gap to eliminate the need for a feeler gauge or a special spanner wrench ever again. When set, the spring-loaded locking pin is released to lock the Outer Bearing Assembly into position. With the spring-loaded locking pin, there is no chance of the gap drifting while running the mill, which can lead to major damage.
No special tools required and adjustments can be made in seconds.
It’s EASY AS 1-2-3

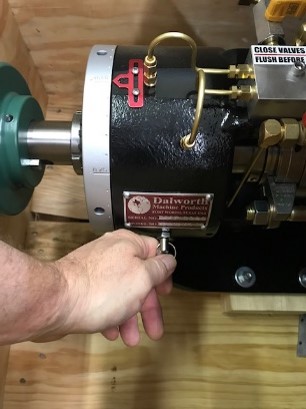

STEP ONE - PULL LOCK OUT

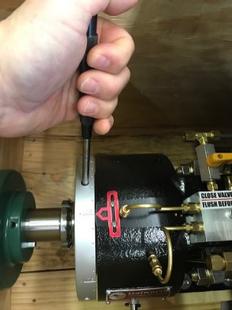

STEP TWO - ADJUST GAP
STEP THREE - RELEASE LOCK
- ACTUAL GAP IS INDICATED ON ADJUSTER
- NO NEED TO REMOVE INSPECTION PLUG LIKE OTHER MILLS REQUIRE
- GAP CHANGES UP TO .020" BIGGER or SMALLER CAN BE DONE IN SECONDS
- NO FEELER GAGE or SPECIAL TOOLS REQUIRE
- LOCKING PIN PREVENTS GAP FROM CHANGING WHILE RUNNING
- LOCKING PIN CAN NOT DAMAGE ADJUSTER LIKE OLDER STYLE LOCK SCREWS DID
ADDED BENIFITS
